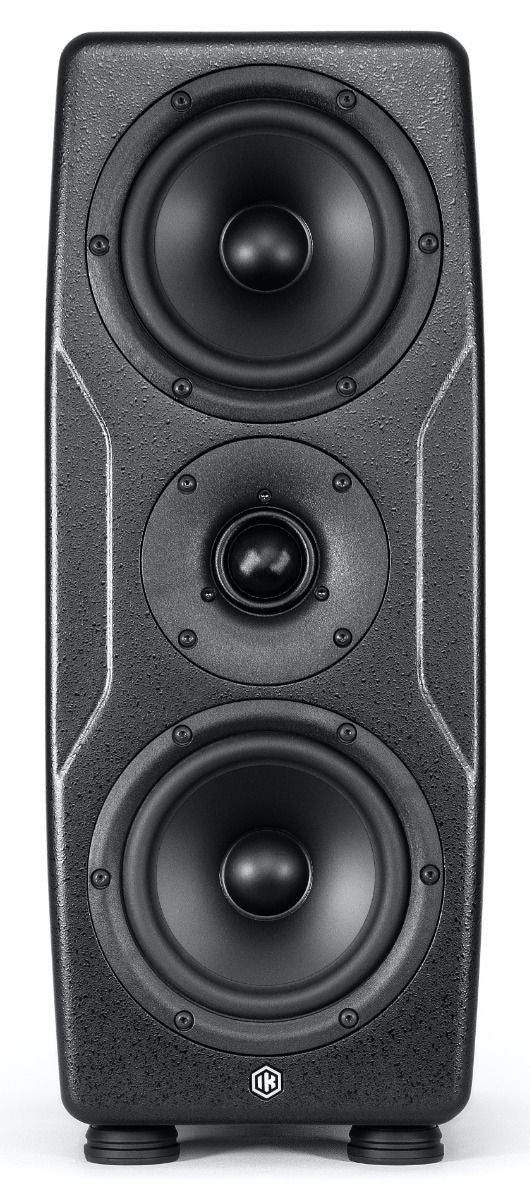

IK Multimedia iLoud Precision MTM MKII Studio Monitor (Single)

IK Multimedia iLoud Precision MTM MKII Studio Monitor (Single)

A flagship active studio monitor designed for critical mixing, mastering, and immersive audio applications, combining a symmetrical midwoofer-tweeter-midwoofer configuration with advanced DSP and integrated ARC X room correction. The MTM architecture uses two 5" ultralight coated-paper mid-woofers positioned around a 1.5" graphene-reinforced textile dome tweeter to provide focused dispersion, precise stereo imaging, and highly controlled transient response.

Its custom Class-D amplification delivers 175 W RMS, while the DSP-controlled signal path operates at 96 kHz and uses a 6th-order linear-phase crossover at 1.35 kHz. The monitor provides a reference frequency response of 45 Hz to 22.5 kHz within ±1 dB, with low-frequency extension reaching 37 Hz at -4 dB. Maximum continuous SPL reaches 105.5 dB at 1 meter, with peak output up to 117 dB in free-field conditions.

Built-in ARC room calibration allows the monitor to measure and compensate for acoustic problems in the listening environment. ARC X software provides deeper configuration and management, while adjustable high-pass filtering, LF, desk, mid, and HF contour controls allow the speaker to be adapted to different placements and monitoring systems. Additional delay adjustment from 0 to 10 ms supports time alignment in multichannel and immersive installations.

The reinforced HDF enclosure is designed to minimize cabinet resonance, while the symmetrical MTM driver arrangement creates precise imaging and a tightly controlled listening area for demanding production work. Rear and bottom mounting options also make it suitable for wall, ceiling, and immersive studio installations.

Key Features

• Active 3-driver MTM studio monitor

• Symmetrical 2 x 5" midwoofer configuration

• 1.5" graphene-reinforced textile dome tweeter

• 175 W total RMS Class-D amplification

• 145 W LF and 30 W HF amplification

• 96 kHz DSP-controlled signal path

• 45 Hz to 22.5 kHz frequency response ±1 dB

• Low-frequency extension to 37 Hz at -4 dB

• 105.5 dB continuous SPL at 1 m

• 117 dB peak SPL at 1 m

• 6th-order linear-phase crossover at 1.35 kHz

• Coherent time and phase response

• Built-in ARC room calibration

• ARC X software integration

• High-pass filter settings at Off, 35, 50, 65, and 80 Hz

• LF contour adjustment from -10 to +6 dB

• Desk contour adjustment from -10 to 0 dB

• Mid contour adjustment from -4 to +4 dB

• HF contour adjustment from -6 to +6 dB

• ±5 dB input gain trim

• Adjustable 0 to 10 ms additional delay

• High-performance vented enclosure

• Reinforced HDF cabinet construction

• Suitable for stereo and immersive monitoring systems

• Dimensions: 18.1 x 7.28 x 11.1 in

• Weight: 21.8 lb

• Supplied with ARC measurement microphone, microphone clamp, USB cable, power cord, and isolation pods
