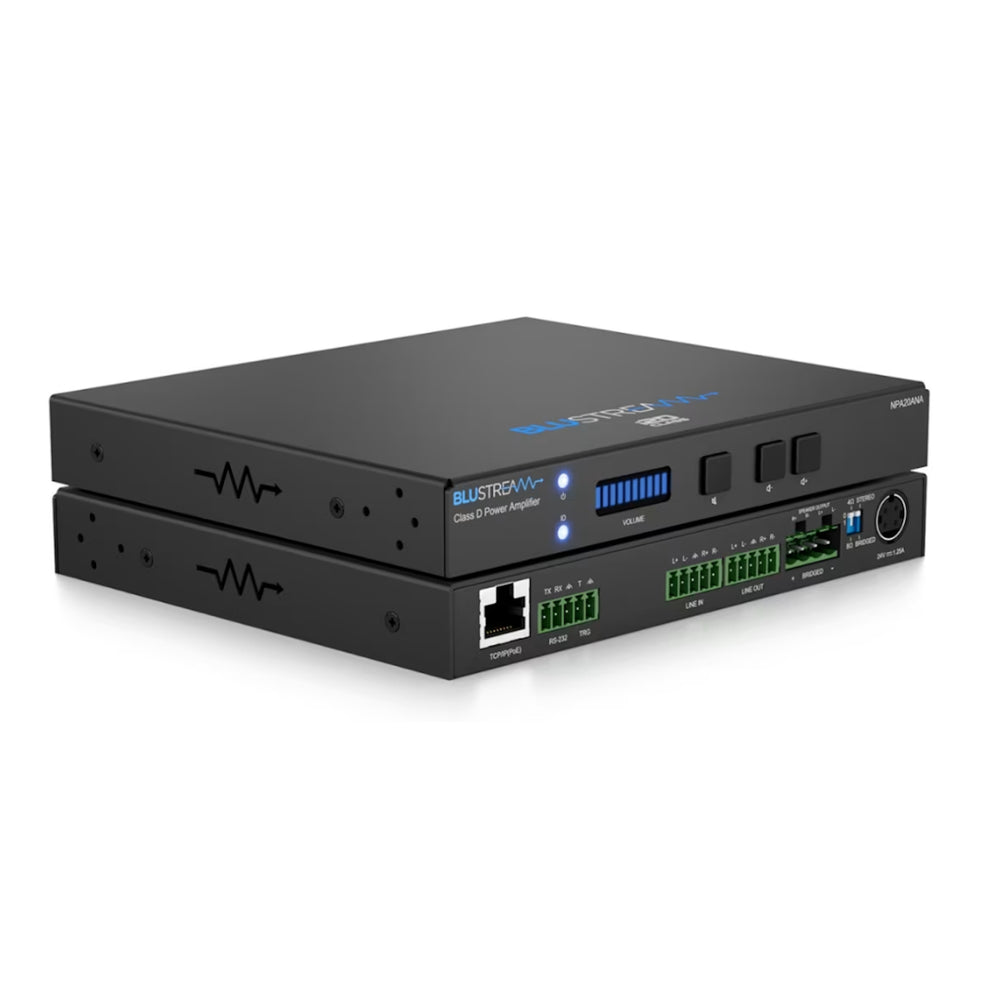

The NPA20ANA networked power amplifier features a 2 x 10W (1 x 20W mono) audio output at 4 or 8 ohm, with a 2ch balanced / unbalanced analogue audio input.
The unit can be powered via PoE or PoE+ from a compatible network switch, or locally should the switch not support PoE. The unit includes the ability to lower the amplifier power output subject to PoE capabilities, a 31 band DSP with EQ, and audio delay capabilities for lip sync correction with any associated video within the zone.
A daisy-chain audio output with a centralised control feature for linking up to 4x NPA20ANA devices, control from the front panel buttons, RS-232, IP, Web-GUI, or 12V trigger gives maximum flexibility for system integration and simplified control.
The NPA20ANA is ideal for dedicated audio delivery in smaller areas (such as bedrooms or en-suites) where larger amplifiers would be considered excessive; or for enhancing voice and audio in meeting spaces.
Features:
• Advanced network audio amplifier with balanced / unbalanced analogue audio input
• Supports 2 x 10W @ 4 / 8 ohm, 1 x 20W @ 4 / 8 ohm
• Supports power via PoE+ on LAN connection or local power supply*
• 2ch balanced / unbalanced audio in and out with master / slave amp control feature allowing daisy chain of up to 4x NPA20ANA amplifiers
• DSP with 31 band EQ with +3dB/-10dB and audio delay
• Local 0V / 5~12V input trigger for automated power control
• Control via front panel buttons, RS-232 and IP
• Auto standby mode with signal sensing
• In-built web-GUI for setup and control
* Amp power limited when using PoE / PoE+
