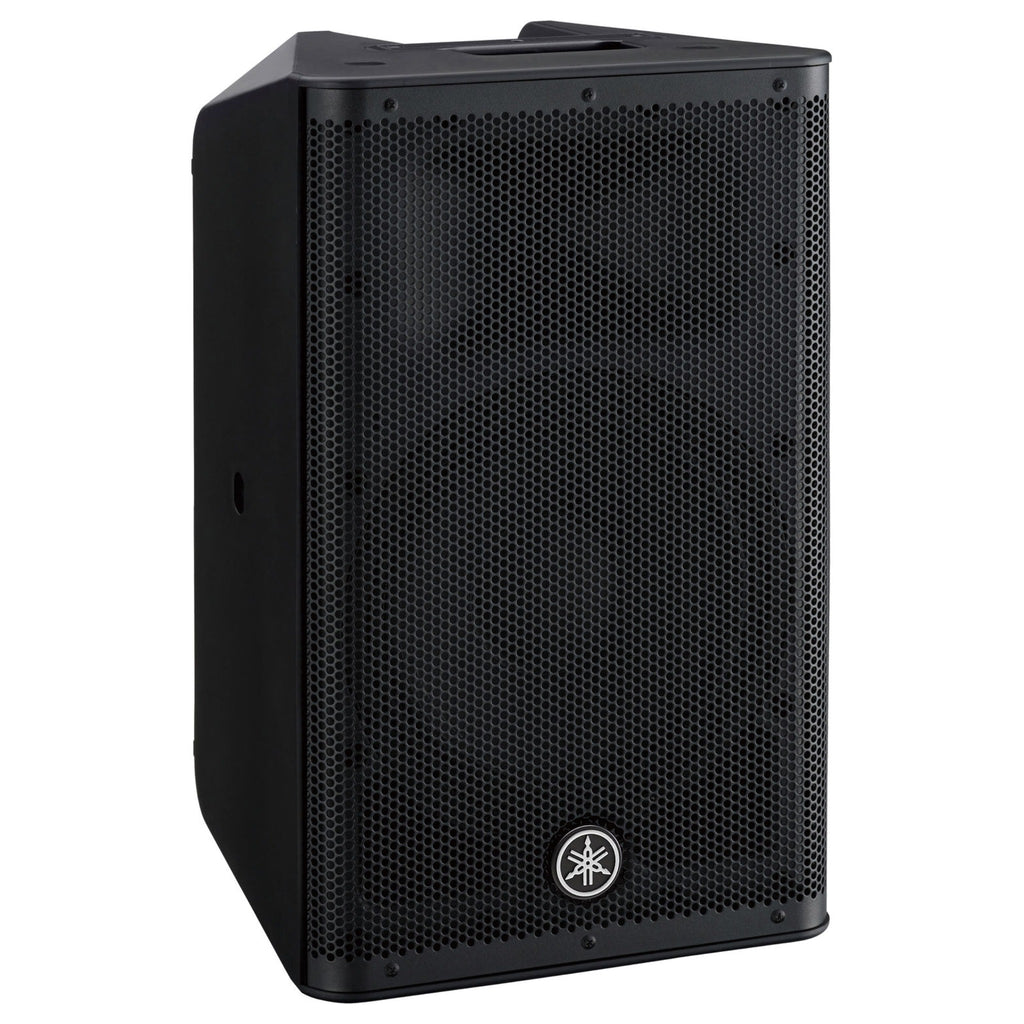

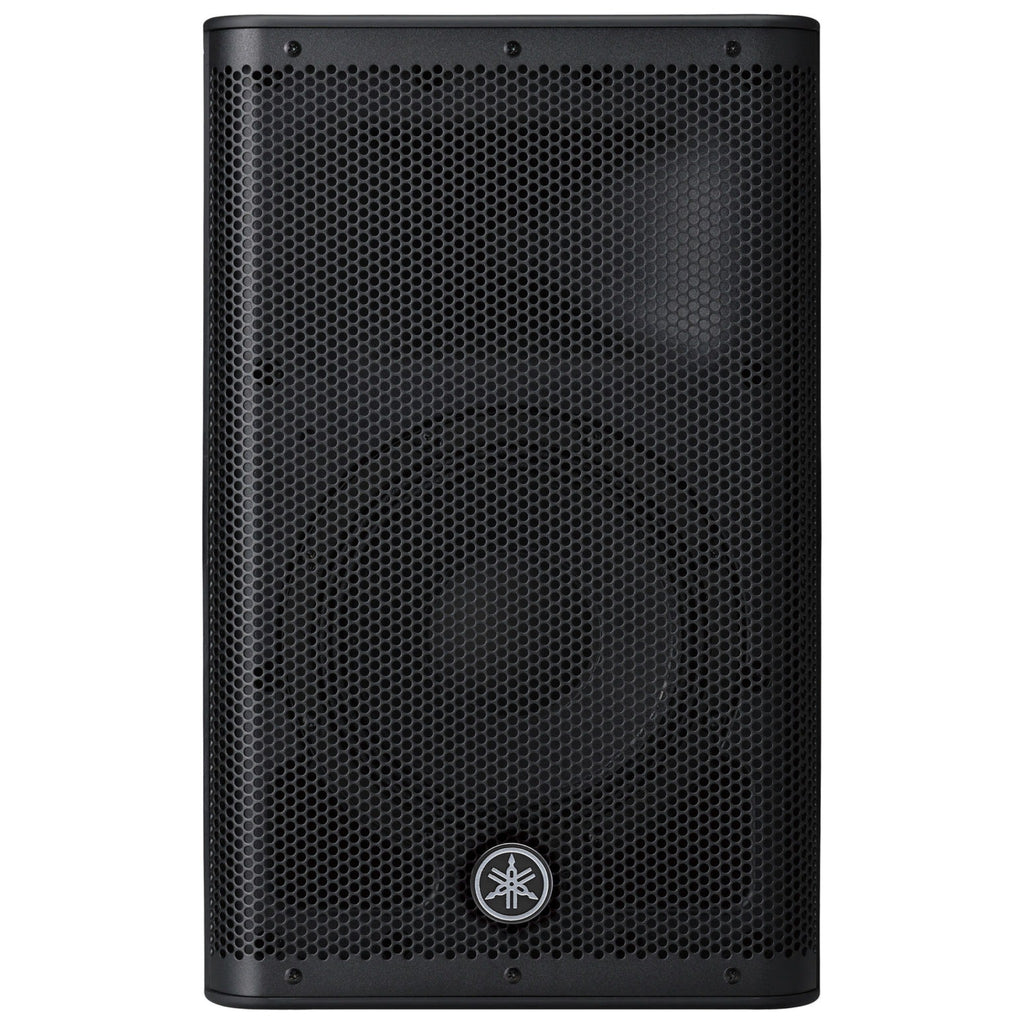

Yamaha DXR10mkII 10" 1100W 2-Way Active Loudspeaker
The Yamaha DXR10mkII is a 10" 2-way active loudspeaker delivering 1100W peak output with clear, high-resolution sound for live performances. Its rugged ABS bass-reflex cabinet houses a 10" woofer and 1.75" compression tweeter. Integrated FIR-X DSP and D-CONTOUR dynamic processing ensure smooth frequency response and optimal protection for drivers and amplifier circuits. Designed for flexible placement, it features a dual-angle 35mm pole socket and M8 fly points for mounting or suspension.
Key Features
- 10" powered loudspeaker with 1100W peak / 700W RMS output
- Biamplified Class-D design for minimal distortion
- Bass-reflex ABS cabinet with rugged, compact construction
- 1.75" neodymium compression tweeter
- FIR-X linear-phase crossover DSP for smooth frequency response
- D-CONTOUR dynamic processing for main/FOH or floor monitor use
- 90° H x 60° V coverage with high SPL (132 dB max)

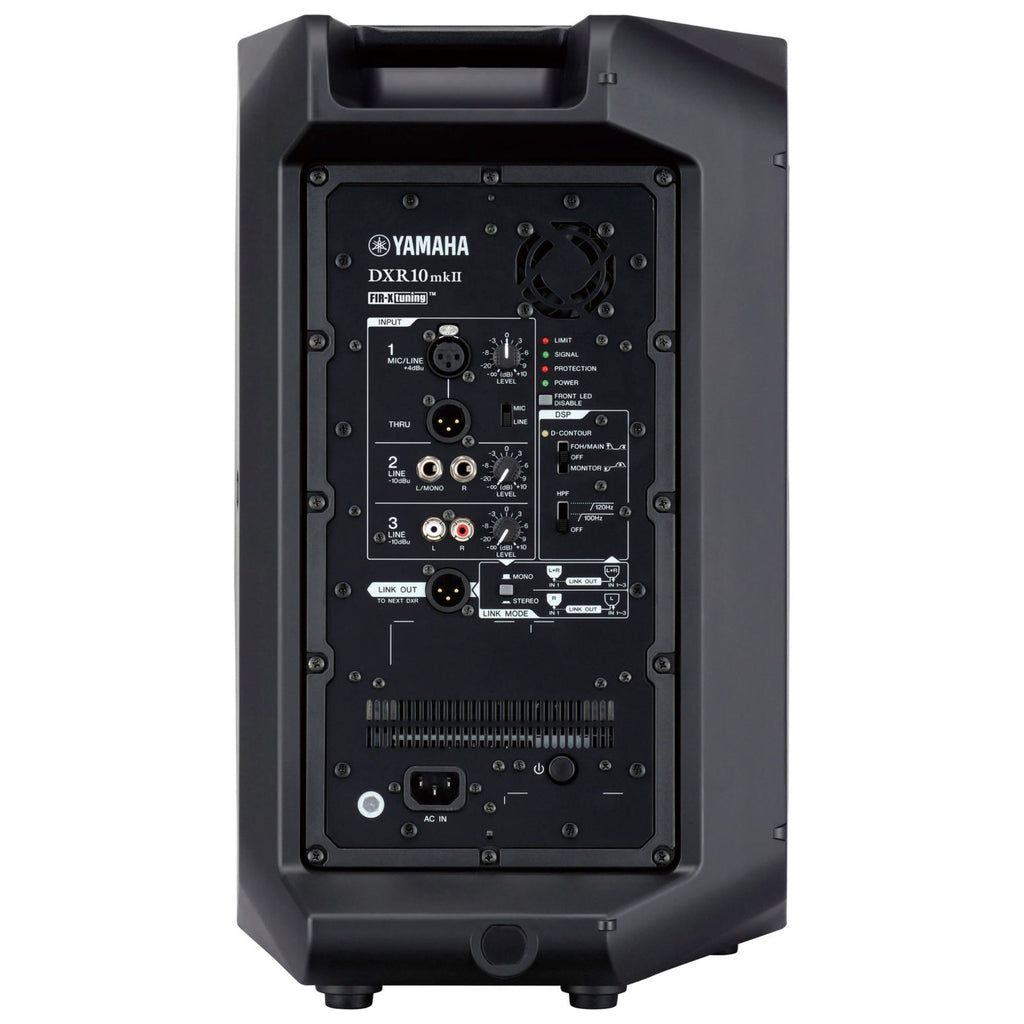

- XLR, 1/4" TS, and RCA inputs; XLR Thru & Link Output
- Dual 35mm pole socket for tilting on subwoofers; M8 fly points for suspension
- Optional U-bracket available for wall mounting
Specs
- Speaker Type: Active Loudspeaker
- Configuration: 2-Way
- Total Output Power: 700 W RMS / 1100 W Peak
- LF Driver: 1x 10" Woofer, 2" Voice Coil, Ferrite Magnet
- HF Driver: 1x 1.75" Compression Driver, 1" Throat, Neodymium Magnet
- Frequency Range: 56 Hz – 20 kHz (-10 dB)
- Max SPL: 132 dB
- Coverage Angle: 90° H x 60° V
- Amplifier Class: Class-D
- Enclosure Type: Bass-Reflex ABS
- DSP: 48-Bit, FIR-X Filter, Venue Settings, D-CONTOUR
- Inputs/Outputs: 1x XLR, 2x 1/4" TS, 1x Stereo RCA, 1x XLR Thru, 1x XLR Link
- AC Power: 100–240 V, 50/60 Hz, 90 W consumption
- Mounting: Stand mount (dual 35mm pole), 2x M8 fly points (top & rear)
- Handles: 1x Top
- Dimensions: 12 x 19.8 x 12.2" / 305 x 502 x 310 mm
- Weight: 30.6 lb / 13.9 kg
- Package Weight: 37.35 lb
- Box Dimensions: 25 x 15.25 x 15"
Included
- Yamaha DXR10mkII 10" 2-Way Active Loudspeaker
- Power Cord
- Limited 7-Year Manufacturer Warranty
- User Manual
