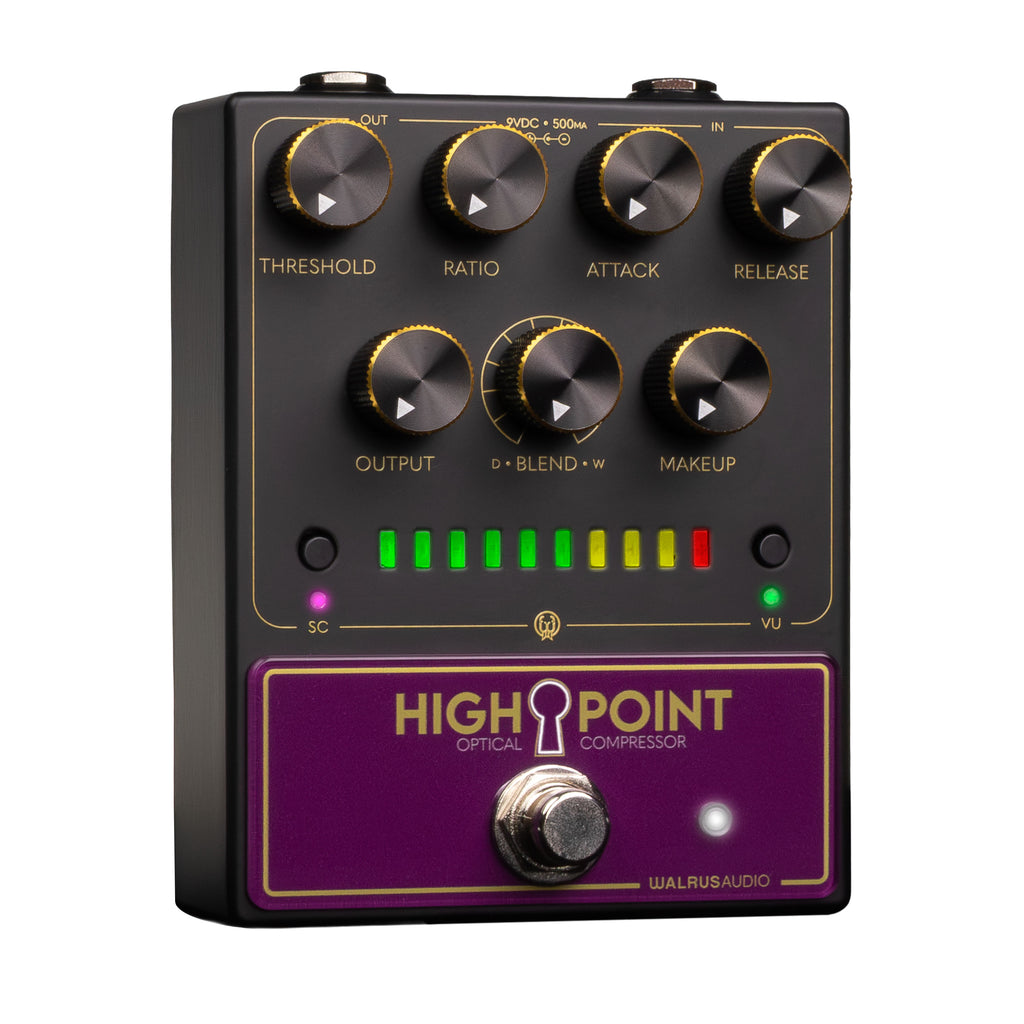

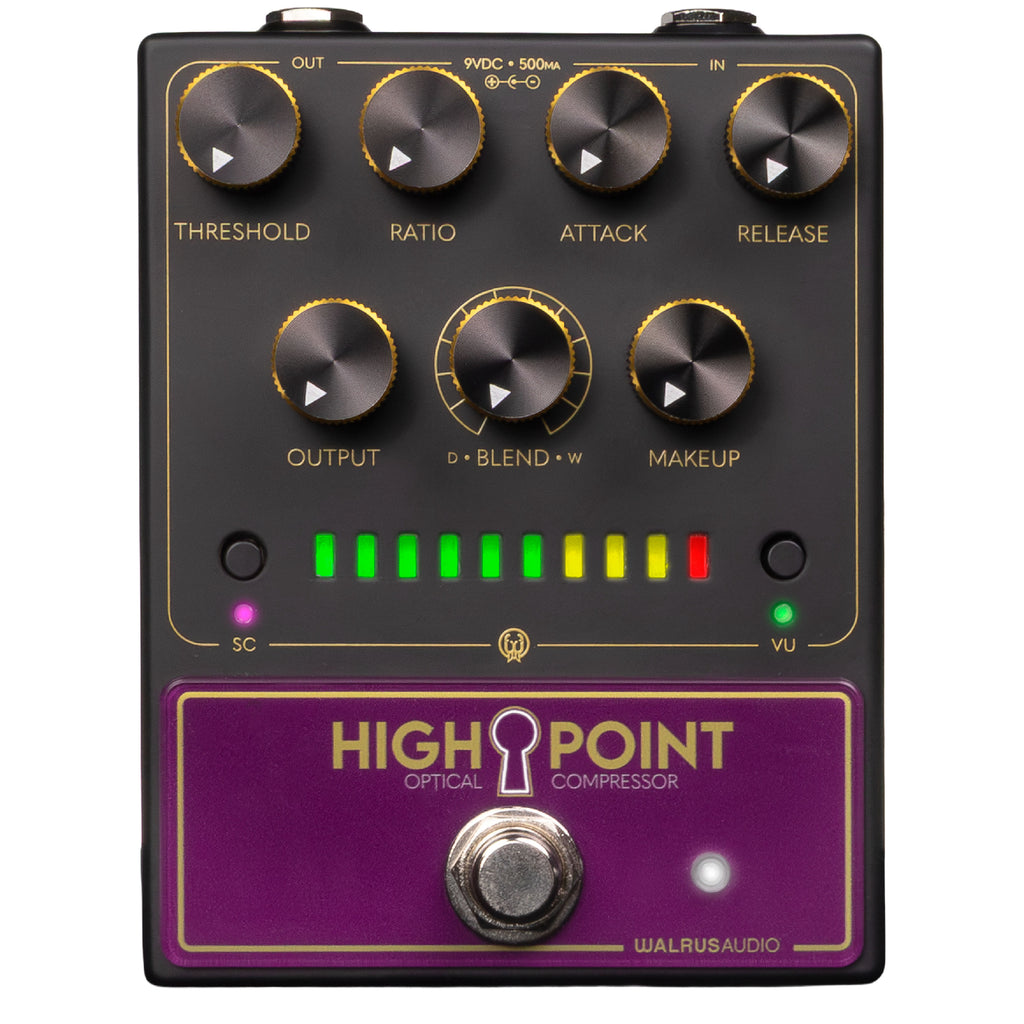

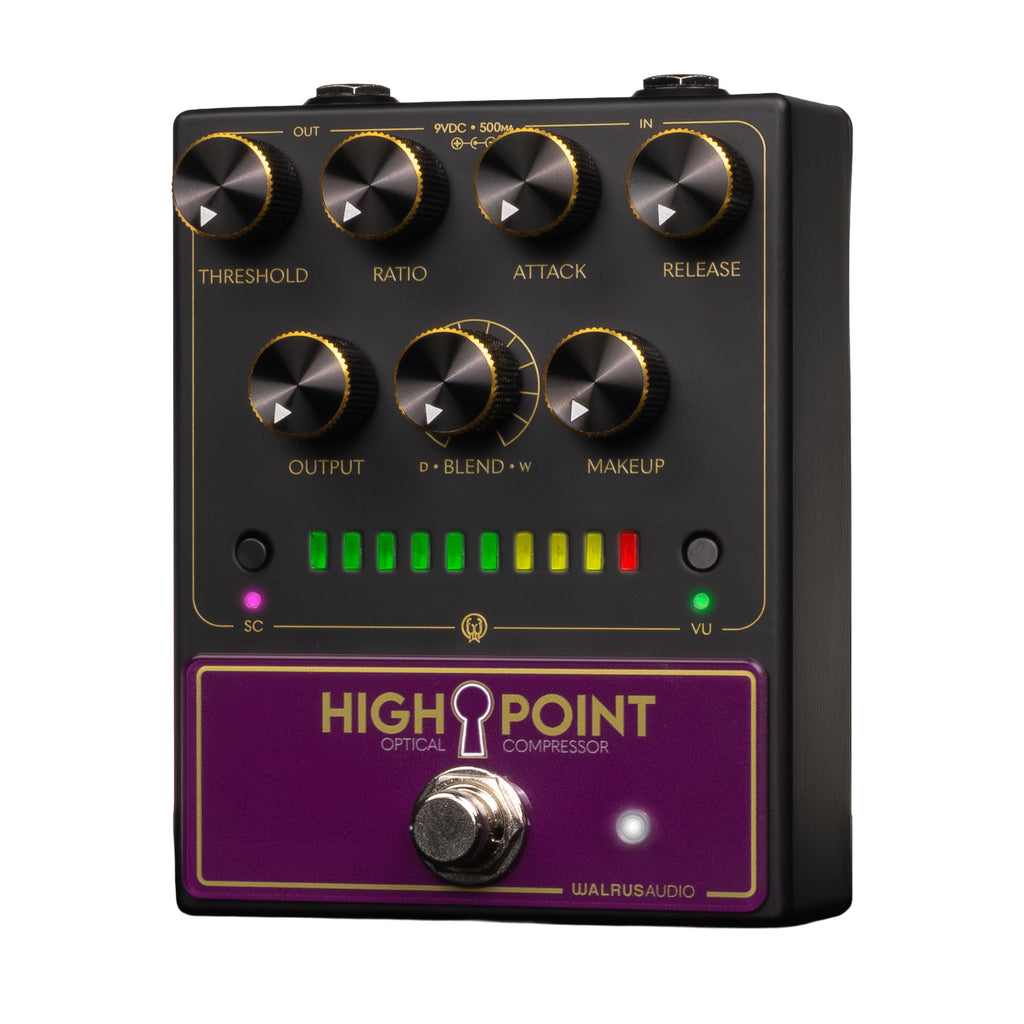

Highpoint Analog Optical Compressor
The Highpoint Analog Optical Compressor is a studio-grade dynamics tool designed for players who want precise control without sacrificing musicality. Built around an all-analog optical compression circuit, it delivers smooth, natural gain reduction with a strong sense of depth, warmth, and clarity—making it an ideal always-on foundation for guitar, bass, and studio rigs.
At its core, the Highpoint focuses on expressive compression that enhances your playing rather than flattening it. Notes bloom naturally, chords breathe, and transients remain articulate even under heavy compression. The response curve is intentionally smooth, with carefully tuned attack and release behavior that feels closer to high-end studio rack units than typical pedal compression.
A key feature is its true parallel compression via the Blend control, allowing you to mix your dry signal with the compressed path. This preserves attack and dynamics while adding sustain and harmonic density underneath. Combined with dedicated Attack, Release, Ratio, and Make-Up gain controls, the Highpoint offers a level of precision normally reserved for professional studio hardware.
Internally, the pedal operates at ±15VDC, giving it exceptional headroom and dynamic range. This allows it to remain clean and open even under aggressive settings, avoiding the pumping or congestion often associated with lower-voltage designs. The result is a compressor that stays musical, punchy, and transparent across a wide range of playing styles.
Visual feedback is handled by a 10-LED metering system that can display input level, output level, or gain reduction. This turns the pedal into a compact monitoring tool, giving real-time insight into how your dynamics are being shaped.
For further refinement, the Highpoint includes a selectable sidechain high-pass filter set at 160 Hz. By preventing low frequencies from over-triggering compression, it maintains tight low-end response and preserves punch—especially useful for bass guitar and extended-range instruments.
Key Features
- Analog optical compression with smooth, musical response
- True parallel compression via Blend control
- Dedicated Attack, Release, Ratio, and Make-Up gain controls
- Internal ±15VDC operation for high headroom and dynamic range
- 10-LED metering with selectable Input, Output, or Gain Reduction display
- Sidechain high-pass filter (160 Hz) for tighter low-end control
- Transparent compression from subtle leveling to sustained dynamics shaping
Specifications
- Power: 9V DC, 500 mA
- Bypass: True Bypass
- Input Impedance: 1 MΩ
- Output Impedance: 300 Ω
- Frequency Response: 20 Hz – 20 kHz
- Circuit Type: Fully analog (optical compression)
- Dimensions (with knobs): 121.6 × 92 × 56.7 mm
