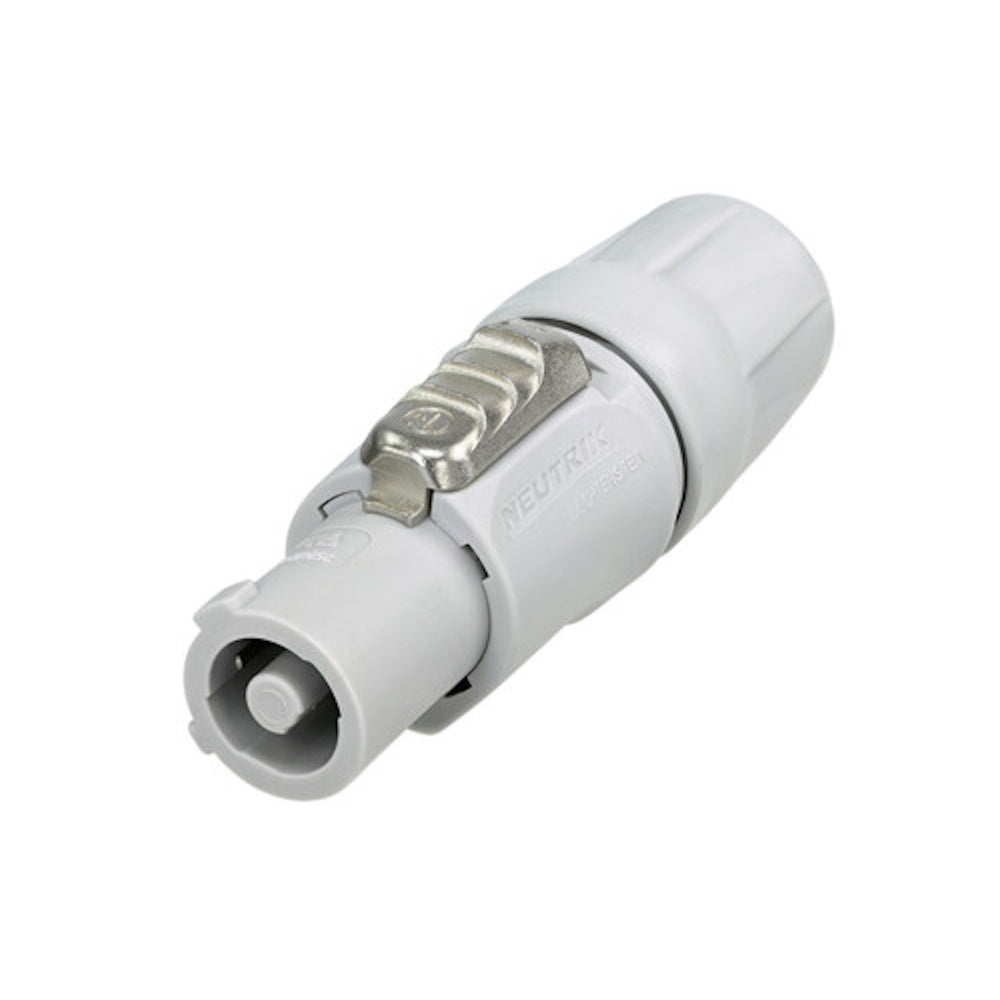

NAC3FCB
Direct replacement / successor: NAC3FXXB-W-S (cable OD 6-12 mm) and NAC3FXXB-W-L (cable OD 10-16 mm)
Lockable cable connector, power-out, screw terminals, grey
The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
Attention: This powerCON is a connector without breaking capacity, i.e. it must not be connected or disconnected under load or live!
Features & Benefits
-
Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
-
Fast and easy twist lock latching system
-
Extremely robust and reliable
-
Ergonomic design
-
Unique Neutrik chuck type strain relief
-
Improved kink protection by two-component bushing
-
UL, cUL recognized components
-
VDE certified
-
Branded with unique hologram - guarantees genuine and authentic Neutrik product
