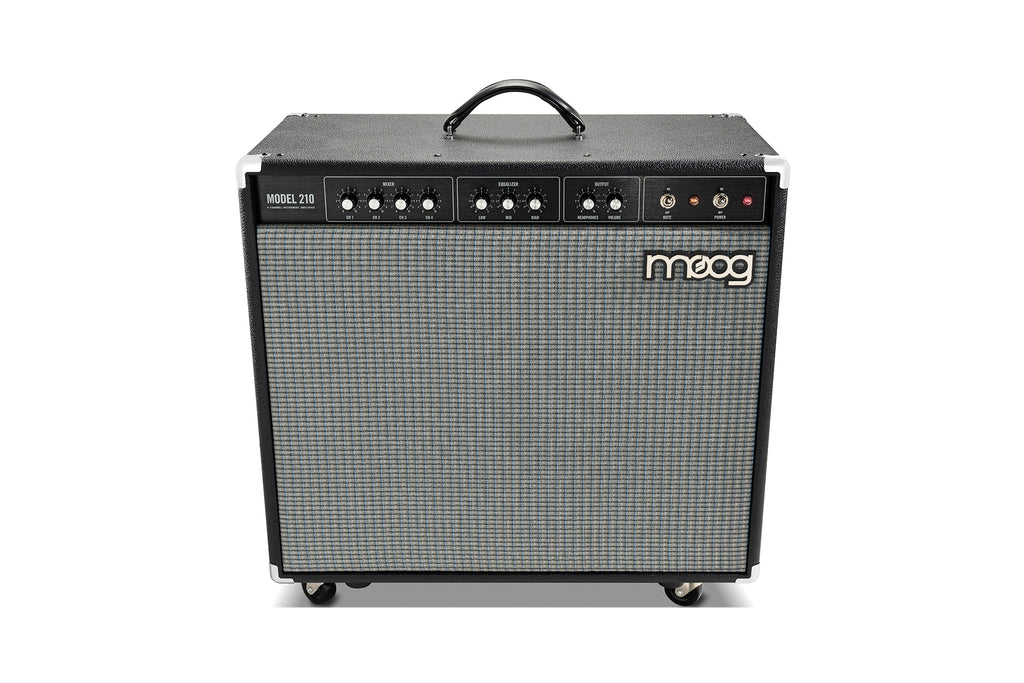

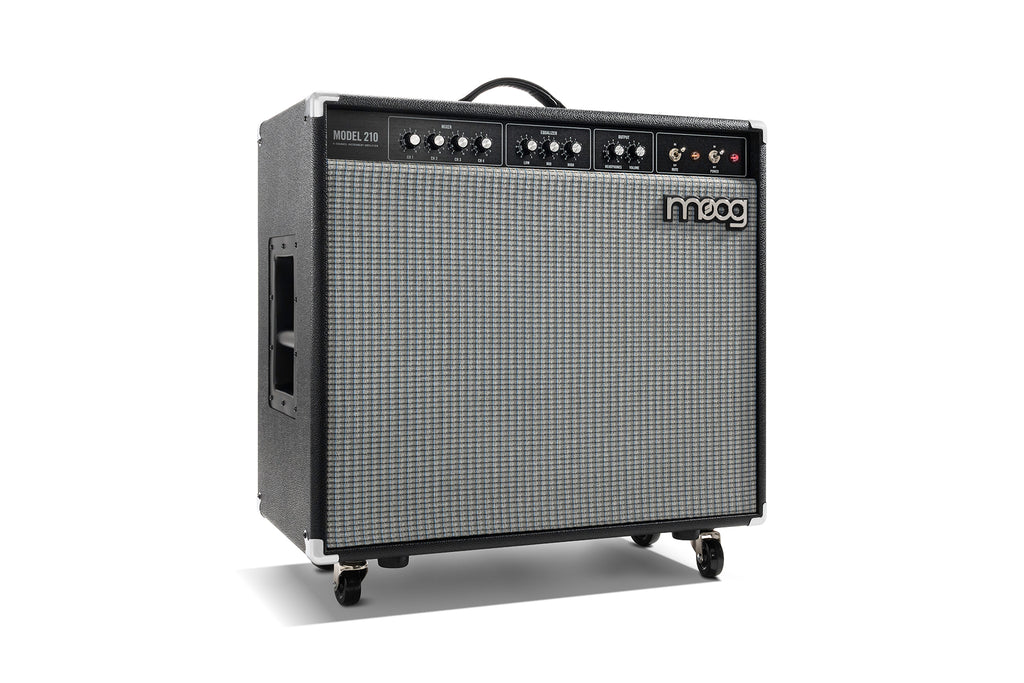

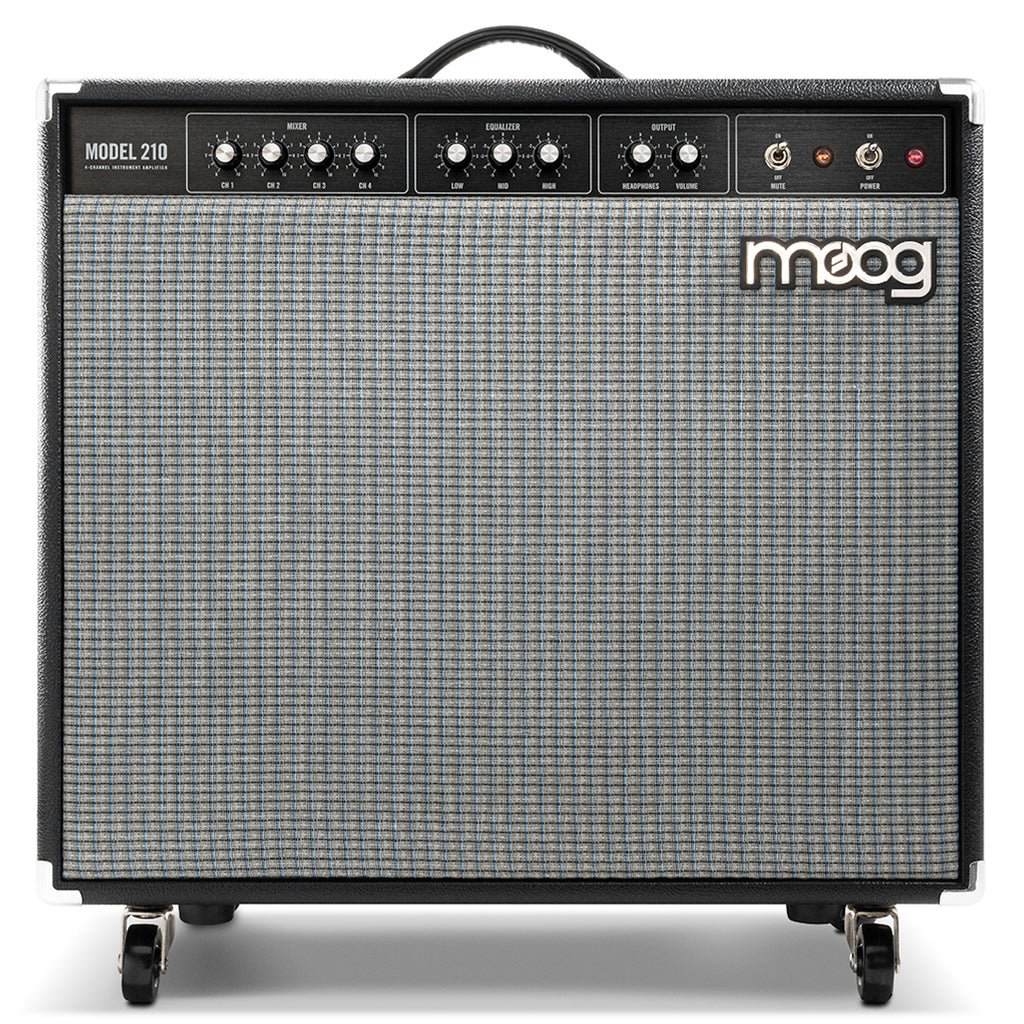

The Moog Model 210 is a premium full-range, flat-response instrument amplifier designed for musicians who need powerful output, deep low-end response, and accurate sound reproduction for demanding live performances and studio setups. Featuring all-analog amplification with effectively zero perceptible latency, it preserves the dynamics, detail, and tonal character of synthesizers, keyboards, electronic drums, modeling systems, and other electronic instruments.
With 550W RMS of bi-amplified power, dual 10-inch woofers, and a 1-inch compression driver, the Model 210 delivers an extended frequency response from 35Hz to 23kHz at -10dB. Its 2.5-way speaker design promotes even frequency response, while the integrated 4-channel stereo mixer and 3-band Baxandall master EQ provide flexible control over multiple instruments and overall tonal balance.
Designed for versatile performance setups, the Model 210 features Bluetooth 6.0 audio streaming, balanced XLR and TRS outputs, built-in headphone monitoring, and Stereo Link capability for creating a true stereo amplifier system with a second unit. A rugged wood enclosure with Moog tolex covering, vintage-style grille cloth, protective metal corners, full-grip side handles, and removable casters makes it ready for demanding stage use.
Combining substantial output with detailed, uncolored amplification and comprehensive connectivity, the Moog Model 210 is a powerful monitoring solution for musicians who want to hear their instruments exactly as intended.
Features
-
Full-Range, Flat-Response Amplification: All-analog amplification reproduces the natural tone, dynamics, and detail of connected instruments with effectively zero perceptible latency.
-
550W RMS System Power: Delivers 510W RMS to the low-frequency drivers and 40W RMS to the high-frequency driver, with 1100W peak system power.
-
Dual 10-Inch Woofers: Provides powerful low-frequency response and substantial output for synthesizers, electronic drums, keyboards, and other electronic instruments.
-
1-Inch Compression Driver: Delivers detailed high-frequency reproduction through a wide-dispersion horn.
-
2.5-Way Speaker Design: Helps maintain an even frequency response across the listening area.
-
Extended Frequency Response: Covers 35Hz–23kHz at -10dB for broad, full-range sound reproduction.
-
Integrated 4-Channel Stereo Mixer: Connect multiple instruments and audio sources simultaneously for a streamlined performance setup.
-
Channel 1 Microphone Preamp: Includes an XLR microphone input on Channel 1 for connecting a microphone alongside other audio sources.
-
3-Band Baxandall Master EQ: Provides intuitive tonal shaping to help optimize the amplifier's response for different venues and performance environments.
-
Bluetooth 6.0 Audio Streaming: Wirelessly stream audio from compatible devices for playback, practice, or additional audio sources.
-

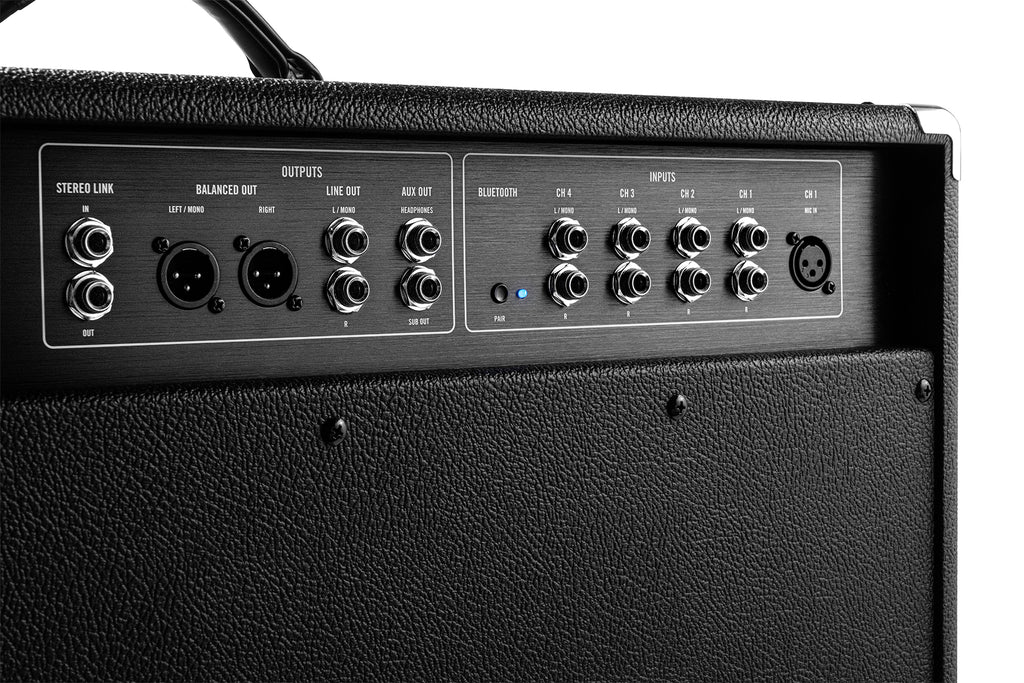

Balanced Stereo Outputs: Features XLR and TRS main outputs for connecting to PA systems, recording equipment, and external audio devices.
-
Stereo Link Capability: Allows two Model 210 amplifiers to be configured as a true stereo system.
-

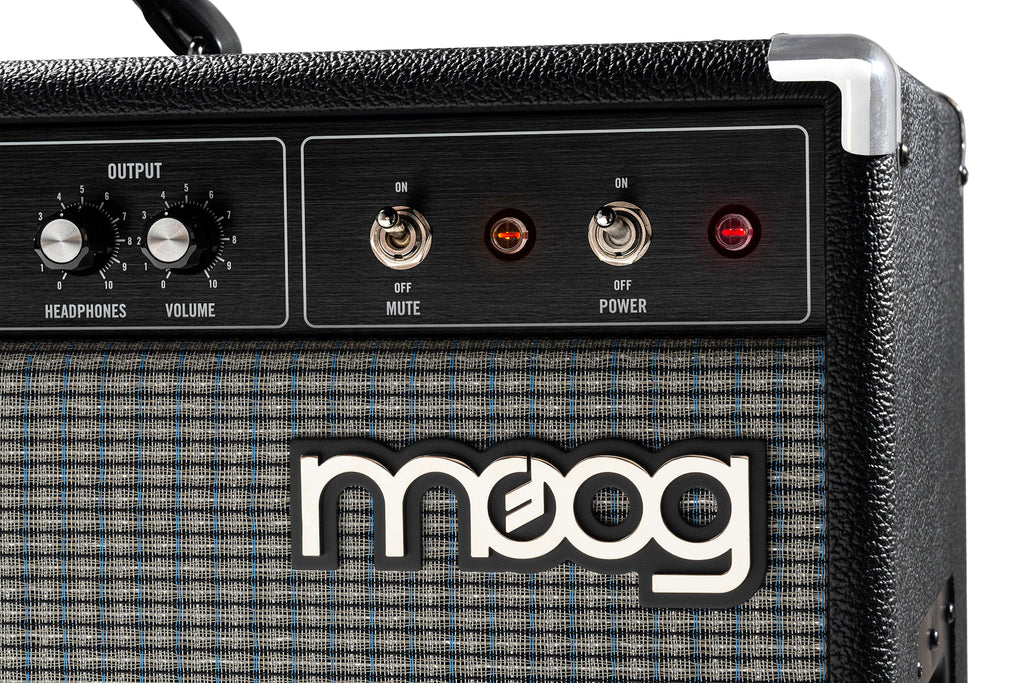

Built-In Headphone Amplifier: Supports silent rehearsal and private monitoring.
-
Stage-Ready Construction: Features a durable wood enclosure, rugged Moog tolex covering, vintage-style grille cloth, and protective metal corners.
-

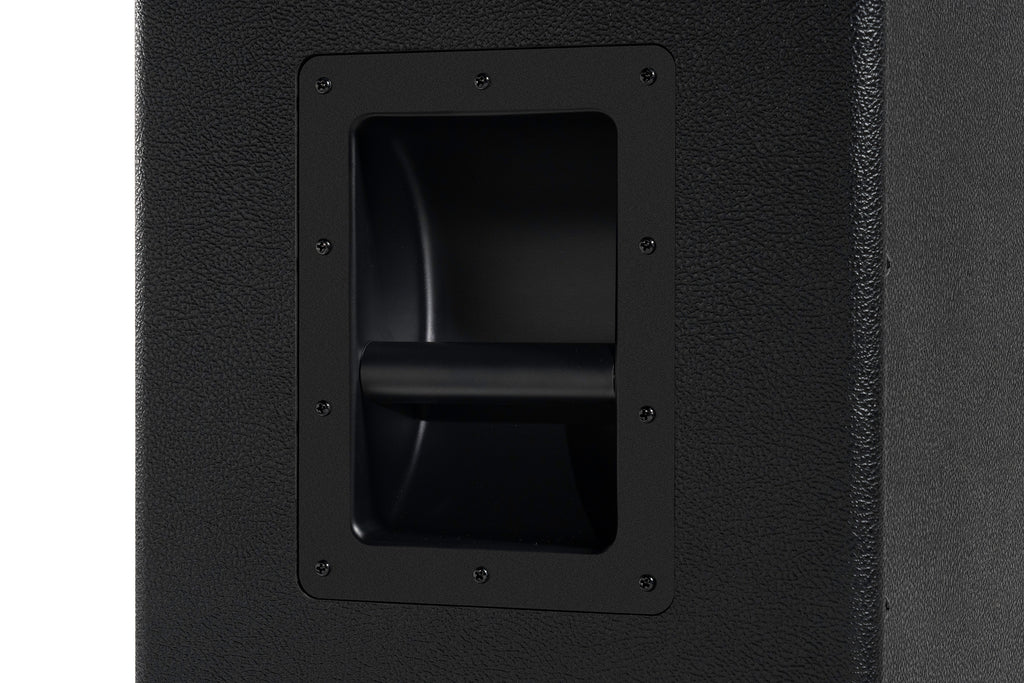

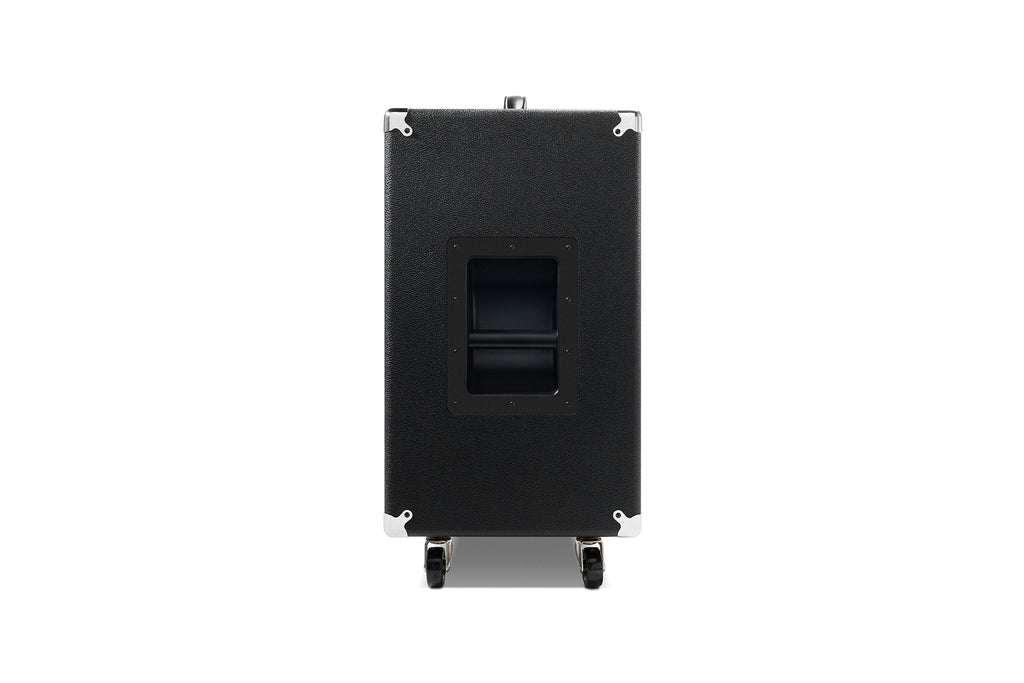

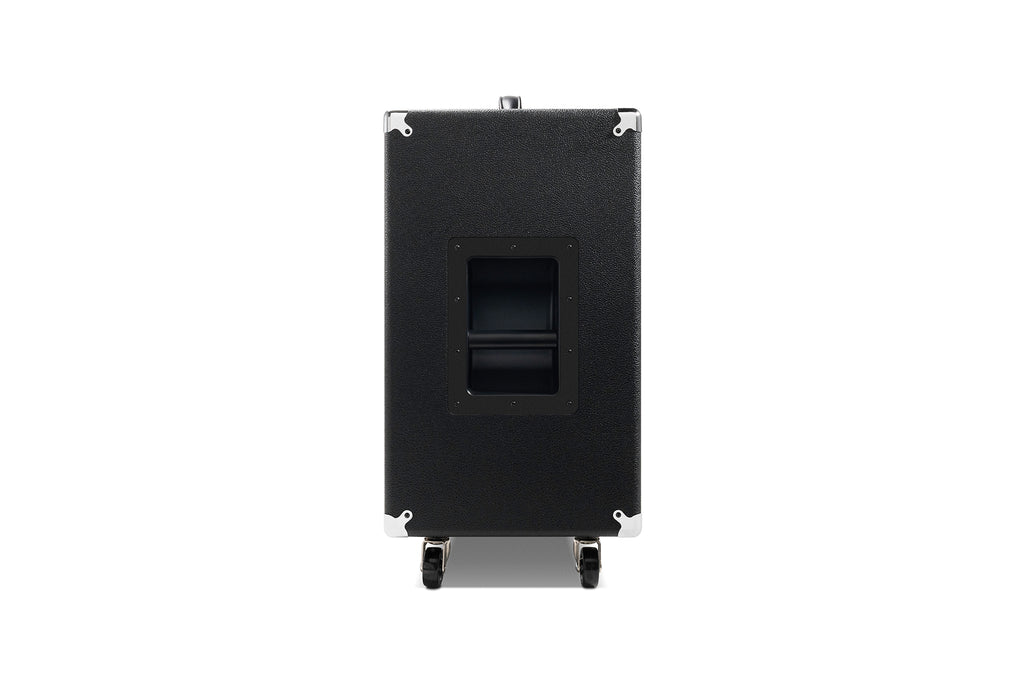

Convenient Transport and Handling: Includes a top carry handle, two full-grip side handles, and removable casters for easier movement between venues and rehearsal spaces.
Technical Specifications
Amplifier
-
System Power: 550W RMS / 1100W peak
-
Low-Frequency Amplifier: 510W RMS
-
High-Frequency Amplifier: 40W RMS
-
Amplification: Bi-amplified, all-analog
-
Frequency Response (-3dB): 38Hz–20kHz
-
Frequency Response (-10dB): 35Hz–23kHz
Speakers
-
Low-Frequency Drivers: 2 x 10-inch woofers
-
High-Frequency Driver: 1-inch compression driver
-
Speaker Design: 2.5-way
-
Horn Coverage: 100° x 100°
Microphone Input (Channel 1)
Line Inputs (Channels 1–4)
-
Connectors: 2 x TRS input connectors per channel, with left/mono operation
-
Maximum Input Level: +18dBu
-
Frequency Response: 20Hz–20kHz (±3dB)
-
Input Impedance: 22kΩ

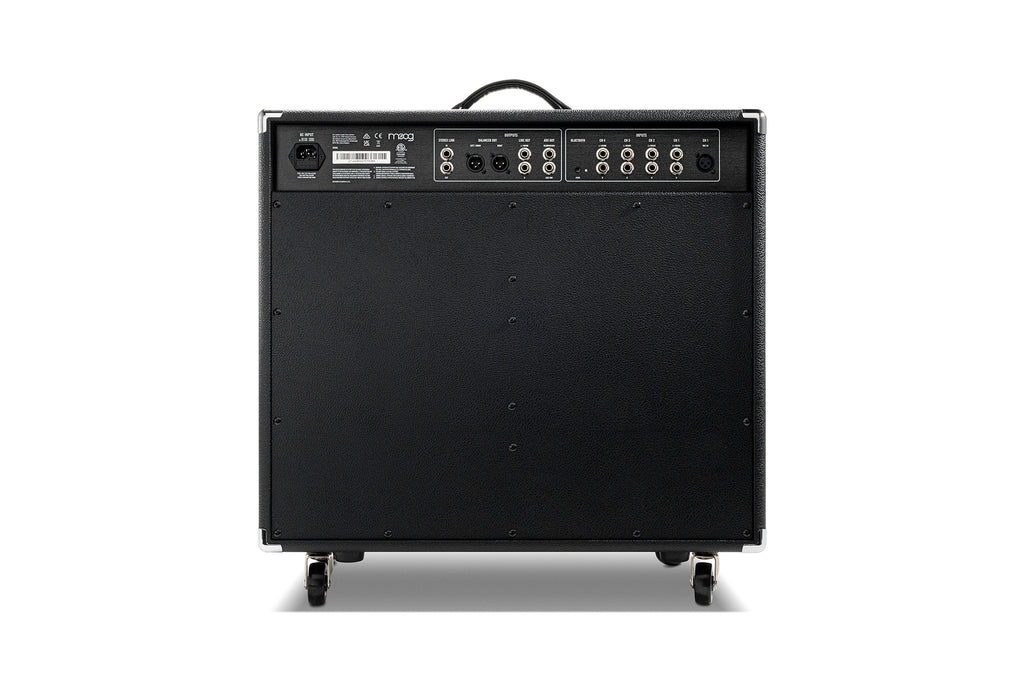

Main Outputs
-
Connectors: 2 x XLR and 2 x TRS
-
Nominal Output Level (at 0.5% THD): +4dBu
-
Output Impedance (unbalanced): 100Ω
Bluetooth
General
-
Power Requirements: 100–120VAC, 60Hz / 220–240VAC, 50Hz
-
Power Connector: IEC
-
Enclosure: Tolex-wrapped wood with protective metal corners
-
Handles: 1 top carry handle and 2 full-grip side handles
-
Casters: Removable
-
Dimensions (H x W x D): 22.0 x 24.2 x 13.3 inches / 56.0 x 61.5 x 33.7 cm
-
Weight: 69.89 lbs / 31.7 kg
