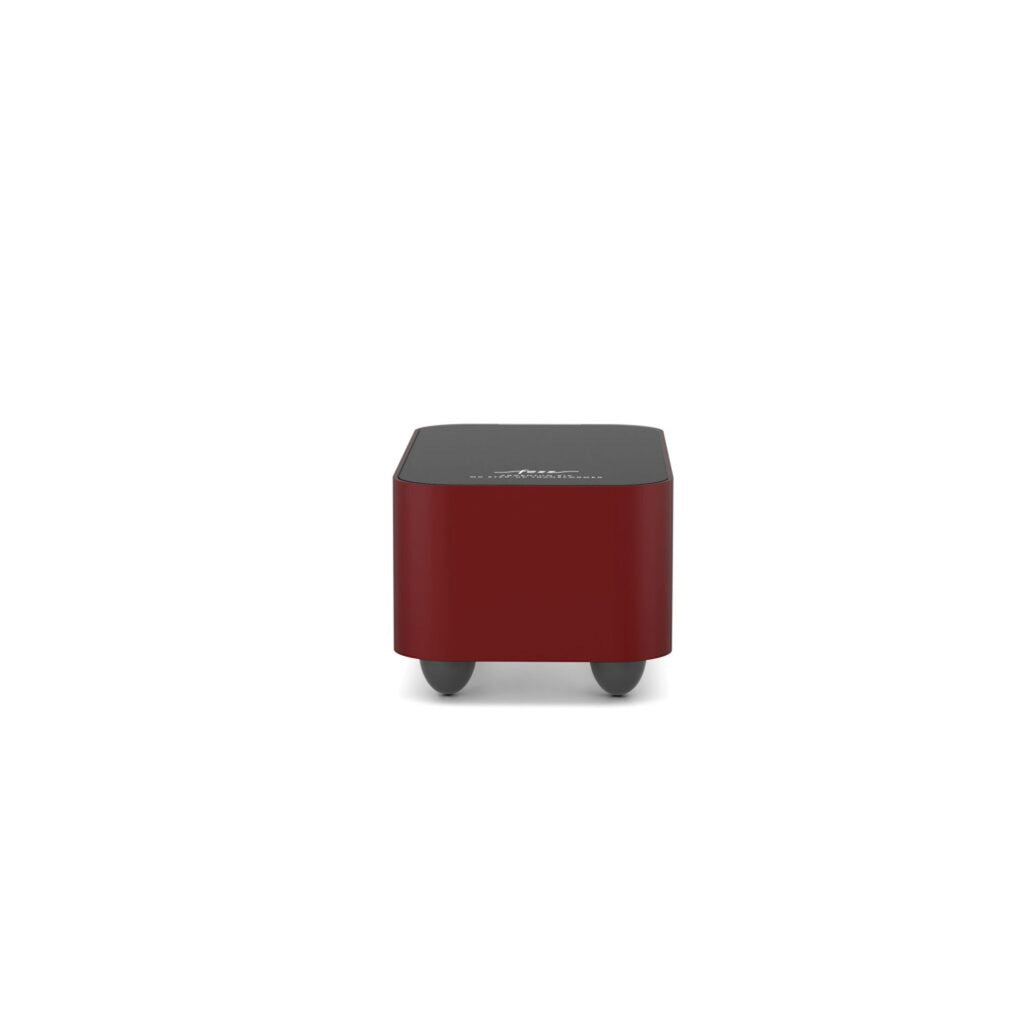

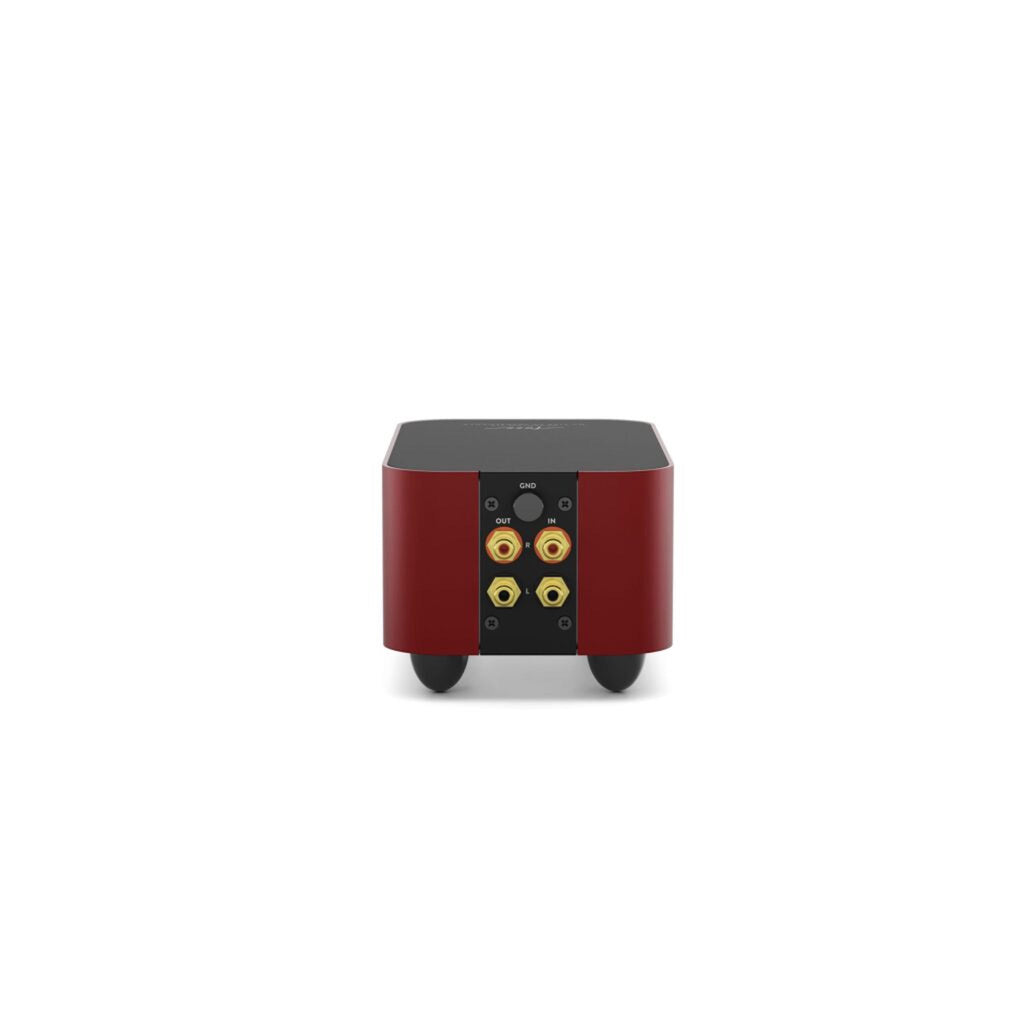

Argentum X20 is high-end MC step-up transformer. There is not a single compromise in its construction – it has been carefully designed to ensure highest fidelity possible. To create the ultimate step-up transformer we have selected the very finest materials: Argentum X20 is wound with 99,9% pure silver wire on a high permeability nanocrystalline core. To ensure noiseless performance it employs double shielding: high permeability mu-metal magnetic shielding and pure OFC copper ribbon electric shielding. With its careful design, ensuring bandwidth extending from 10 Hz to 100 kHz and THD below 0,01% at rated level it is truly beyond compare.
Fezz Argentum X20 step-up transformer is dedicated for: Ortofon Quintet Black, Quintet Blue, Quintet Bronze, Quintet Red, Quintet Mono, Cadenza Black, Cadenza Blue, Cadenza Bronze, Cadenza Red, Cadenza Mono, Diamond, Verismo, Windfeld Ti, Xpression; Goldring Elite, Eroica LX, Ethos, Legacy; Hana ML, Umami Red, Umami Blue; Dynavector DV-20X2 LO, DV-XX2 MKII, XX-2A MC, Te Kaitora Rua, DRT XV-1s; Lyra Kleos SL, Delos, Etna Lambda, Atlas SL Lambda and other cartridges with impedance 1,5-9 Ω
Technical specification:
-
Type: MC step-up transformer
-
Model: Argentum X20
-
Winding material: 99,9% pure silver
-
Core material: nanocrystalline anisotropic high permeability alloy
-
Magnetic shield material: high permeability mu-metal
-
Electric shield material: pure OFC copper ribbon
-
Step-up ratio: 1:20 (26 dB)
-
Recommended load: 47 kΩ
-
Recommended cartidge impedance: 1,5-9 Ω
-
Total harmonic distortion: <0,01%
-
Bandwidth: 10 Hz – 100 kHz (Z = 10 Ω)
-
Weight: 2,5 kg
-
Dimensions: 120 mm x 95 mm x 212 mm
