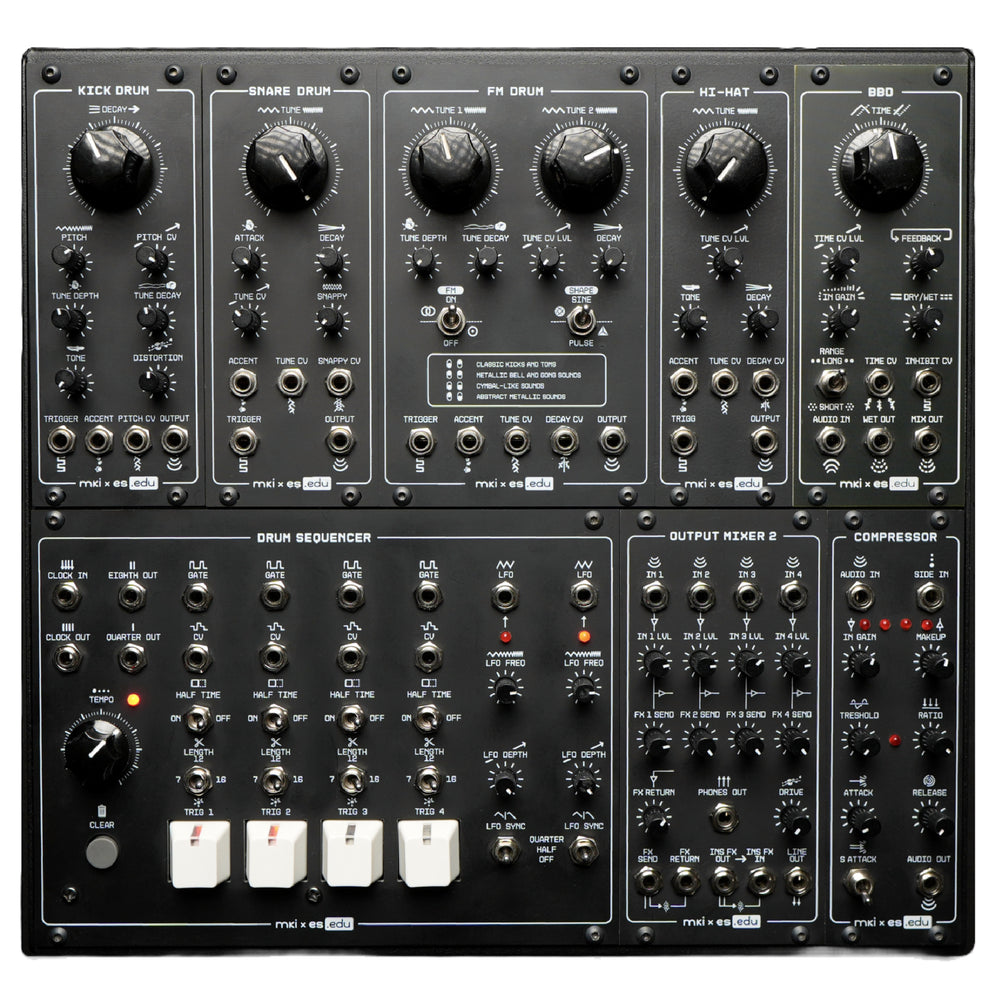

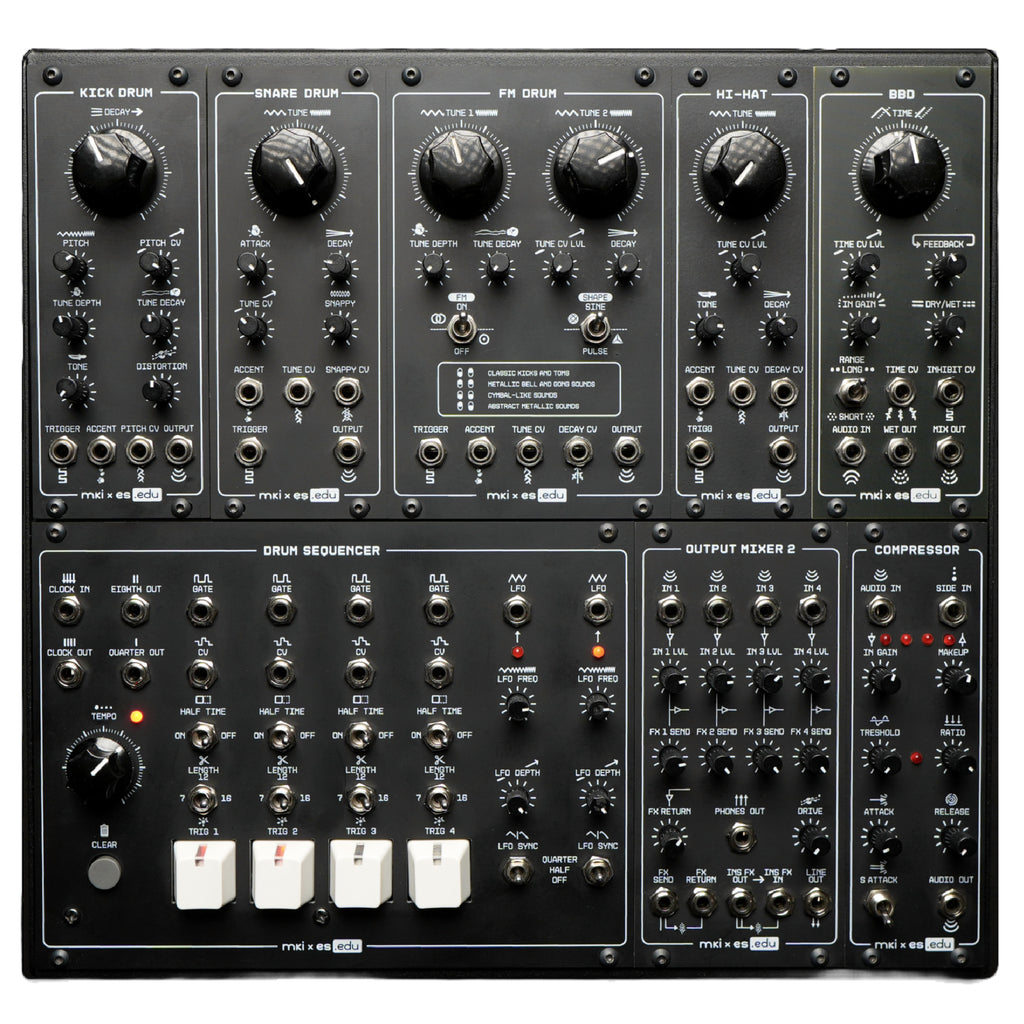

Erica Synths KONSTRUKT-8 - EDU Assembled Drum Set.
The Erica Synths KONSTRUKT-8 Assembled is an eight-module Eurorack drum system designed for expressive live performance, hands-on sound design, and experimental rhythm creation. Combining four fully analog drum voices with a dedicated sequencer, mixer, modulation sources, and built-in effects, it offers an immediate, tactile workflow without menus, presets, or shared controls.
The system features four distinct drum voices: a resonant kick drum, a noise-based snare, a metallic hi-hat generated by six dissonant square-wave oscillators, and a versatile FM drum capable of producing kicks, toms, bells, cymbal-like sounds, bass lines, and leads. Each voice has its own sequencer channel, while the shift register-based sequencer allows rhythms to be entered in real time.
A four-channel mixer provides individual effects sends and returns, alongside variable master diode distortion and a master insert point for additional processing. Two syncable triangle LFOs enable modulation across the voices, while the integrated analog bucket-brigade delay offers flanger and delay modes. A diode-based compressor with sidechain capability adds further control over dynamics and texture.
The fully assembled KONSTRUKT-8 is ready to play out of the box and includes a dedicated Eurorack enclosure with integrated power supply and 15 braided patch cables. With headphone and line outputs and full compatibility with other Eurorack systems, it is equally suited to live performance, studio production, and experimental electronic music.
Features
-
Fully assembled eight-module Eurorack drum system
-
Four fully analog drum voices: kick, snare, hi-hat, and FM drum
-
Kick drum with resonant bridged-T network
-
Snare drum combining filtered transistor noise and a tuned resonator
-
Hi-hat generated by six dissonant square-wave oscillators
-
FM drum capable of producing percussion, bass lines, and lead sounds
-
Four-channel, shift register-based performance sequencer
-
Individual sequencer channel for each drum voice
-
Two syncable triangle LFOs for voice modulation
-
Four-channel mixer with per-channel effects sends and returns
-
Variable master diode distortion and master insert point
-
Analog bucket-brigade delay with flanger and delay modes
-
Diode-based compressor with sidechain capability
-
Headphone and line outputs
-
Eight Eurorack modules compatible with other Eurorack systems
-
Dedicated Eurorack enclosure with integrated power supply
-
Includes 15 braided patch cables: five each at 20 cm, 30 cm, and 60 cm
-
Ready to play out of the box; no assembly required
Specifications
-
System type: Analog Eurorack drum machine
-
-
-
-
Dimensions (W × D × H): 265 × 275 × 60 mm
