Doepfer A-198-2modv Traut./Ribbon Contr. II Module Vintage
The Doepfer A-198-2modv is the module-only Vintage Edition of the A-198-2 Trautonium Manual / Ribbon Controller II, an advanced interface designed to convert position and pressure data from a compatible Doepfer A-198 ribbon manual into control voltages and gate signals for modular synthesis.
The controller electronics generate two independent control voltages and two gate signals. CV1 and Gate 1 are derived from finger position on the ribbon, while CV2 and Gate 2 respond to finger pressure. Position CV is typically used for oscillator pitch, while the pressure-derived output can control parameters such as filter frequency, VCA level, modulation depth, or other voltage-controlled functions.
CV1 can operate continuously for traditional Trautonium-style pitch control or in a quantized mode. Nine user-programmable quantization scales are available and displayed as a one-octave keyboard on the module's OLED screen. Quantization can be switched on or off directly from the front panel or remotely through the Qnt control input.
The position-voltage range can be configured from 0–1V up to 0–5V, corresponding to a one- to five-octave range at the 1V/octave standard. The pressure-controlled CV2 output can reach approximately +7V with seven selectable ranges. Programmable offsets are available for both CV outputs.
Retrigger behavior can be enabled or disabled, including external control through the Rtr input. Gate 2 features an adjustable pressure threshold, allowing an additional event to be triggered once the player presses beyond the programmed level.
An optional MIDI output mode is also available. The Rtr jack can be internally reassigned for MIDI output, or MIDI can be accessed through a compatible breakout solution. User settings, including the nine quantization configurations, can be stored in nonvolatile memory.

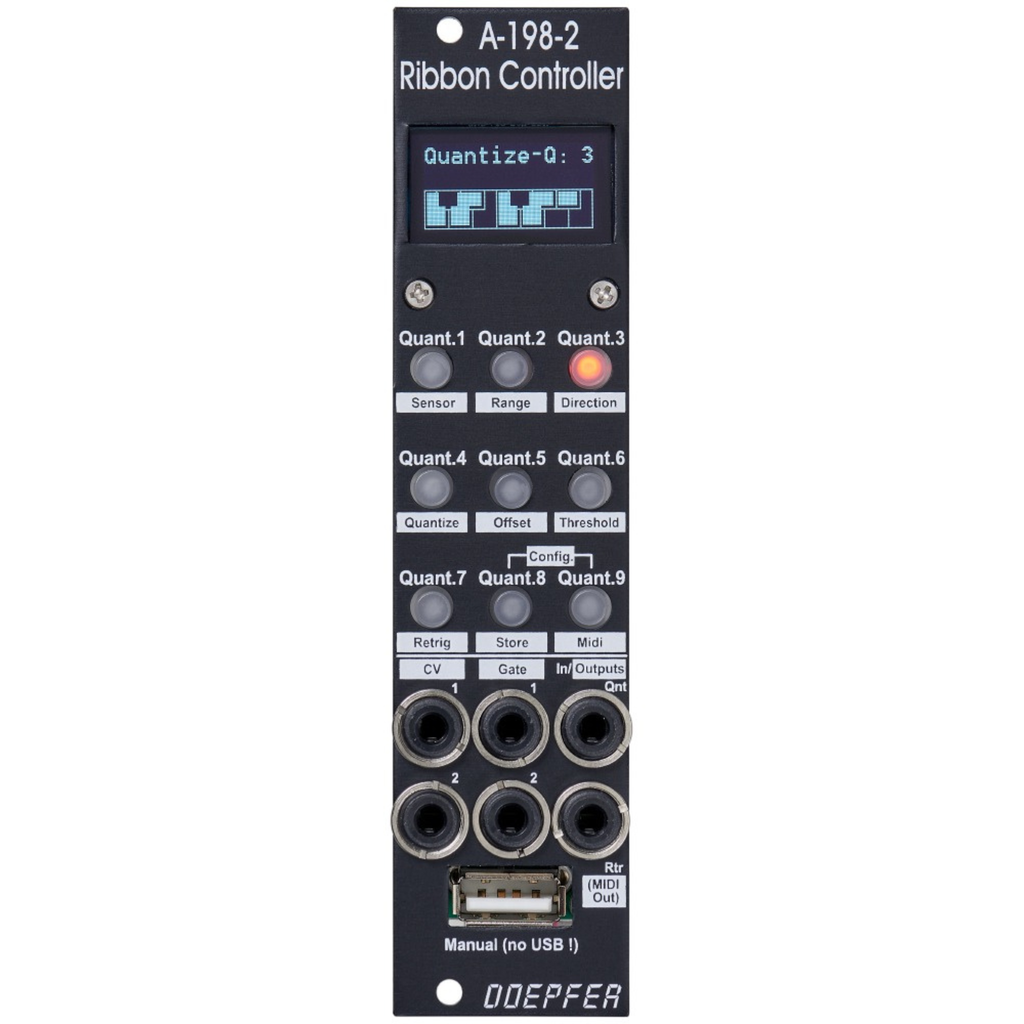

This Vintage Edition features Doepfer's black front panel. This SKU includes the controller module only; the ribbon manual is not included. An existing compatible A-198 manual can be used with the A-198-2.
Key Features
- Advanced Trautonium / ribbon controller interface
- Vintage Edition with black front panel
- Module-only version
- Compatible A-198 ribbon manual required
- Converts ribbon position and pressure into CV and Gate signals
- CV1 controlled by finger position
- CV2 controlled by finger pressure
- Gate 1 generated from ribbon contact
- Gate 2 generated from programmable pressure threshold
- Continuous or quantized position CV operation
- 9 user-programmable quantization scales
- OLED display
- 9 illuminated control buttons
- CV1 range selectable from 0–1V to 0–5V
- 1 to 5 octave range at 1V/octave
- CV2 adjustable up to approximately +7V
- Programmable CV1 and CV2 offsets
- Selectable ribbon direction
- Retrigger on/off control
- External Qnt and Rtr control inputs
- Optional MIDI output
- Nonvolatile storage of settings
- Gate outputs approximately 0/+10V
- 6 HP wide
- 45 mm deep
- Controller module only; manual not included
