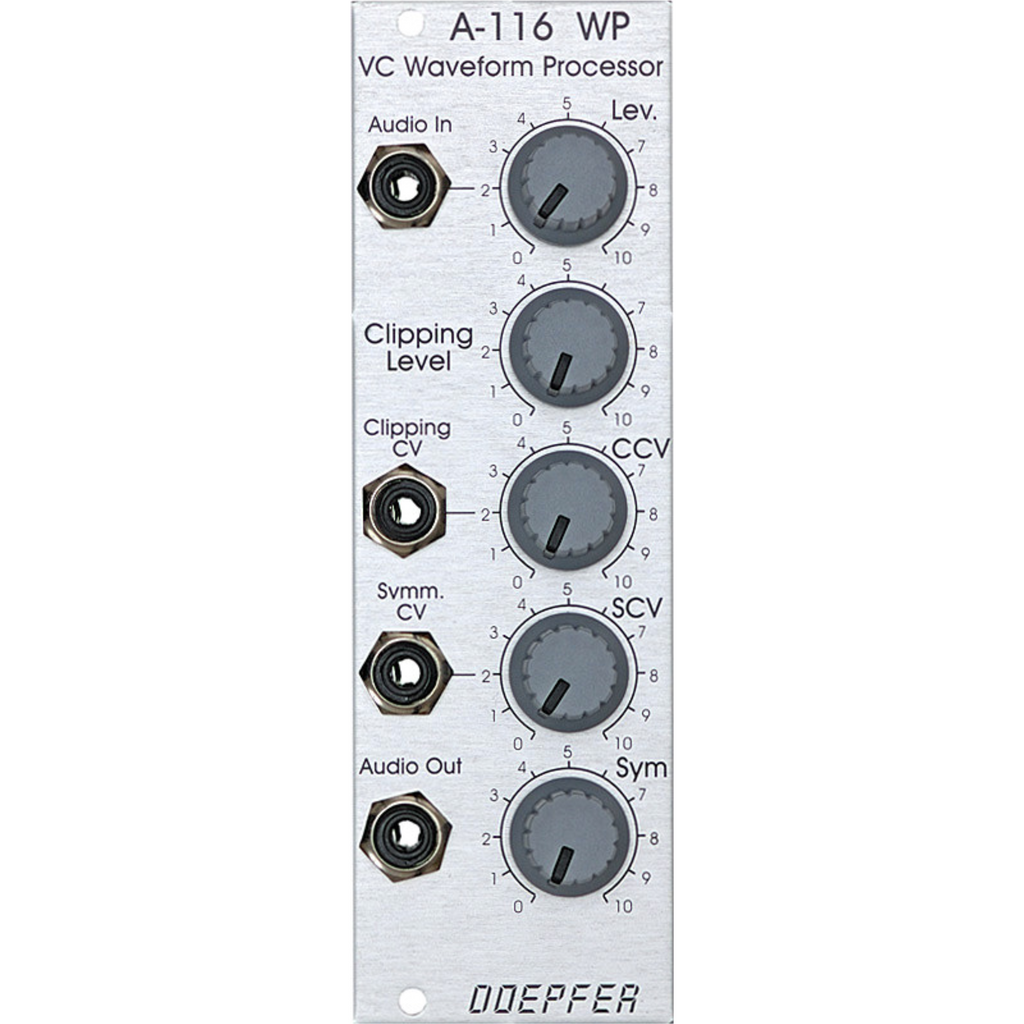

Module A-116 provides voltage-controlled dynamic waveform modification of audio signals. It can produce new waveforms from the standard VCO shapes, and modulate these changes in real time. The signal first of all goes through an input amplifier, which can attenuate the signal as well as amplify it by up to a factor of 2.
After the input amplifier, the signal goes through two parallel processors: a clipping circuit, and an asymmetrical amplifier. The processed signals are added together and sent to the output.
Clipping-Level and Symmetry amounts are not just manually controllable, but can also be modulated by control voltages, to produce complex, constantly changing waveforms.
Breite/Width: 8TE / 8HP / 40.3 mm
Tiefe/Depth: 40 mm (gemessen ab der Rückseite der Frontplatte / measured from the rear side of the front panel)
