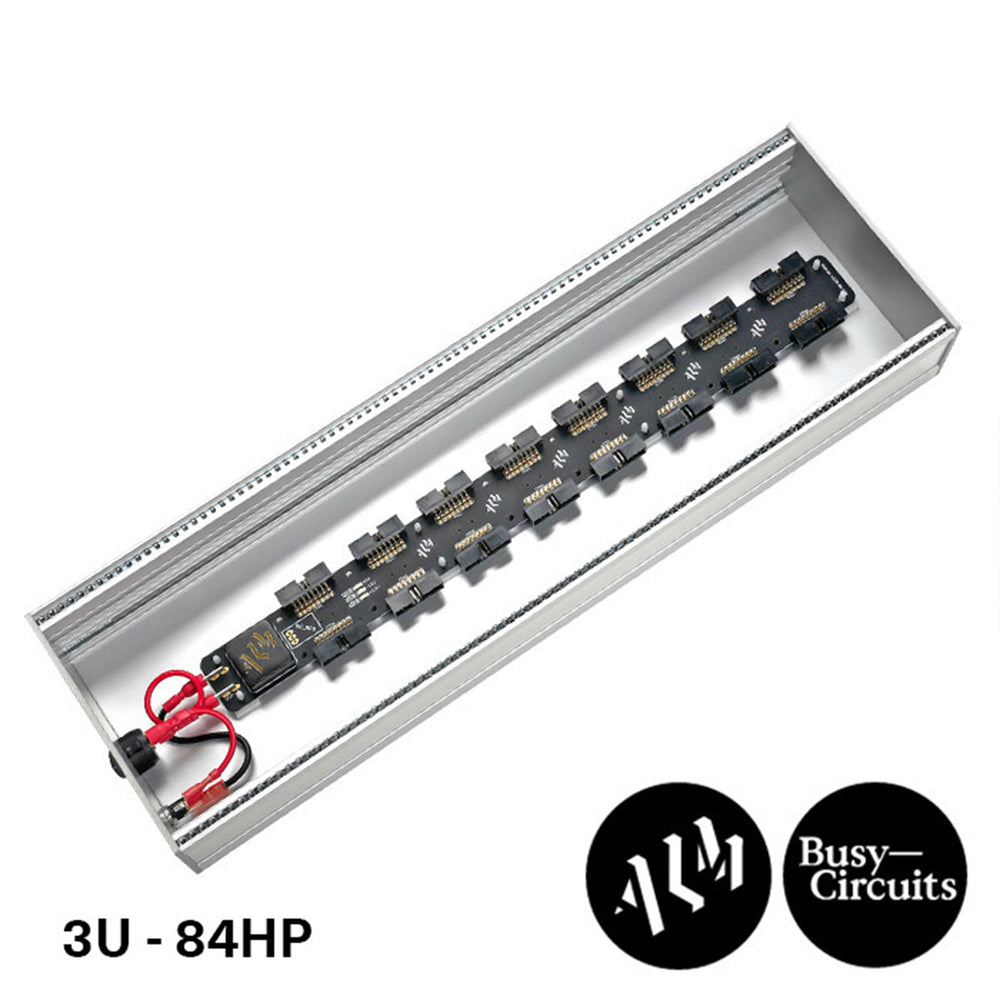

ALM present a new 84HP wide, 3U eurorack case design with an integrated power supply. The case features all anodised aluminium construction, on/off switch, rubber feet, and a high quality switched powered bus board with 16 keyed headers and 1 Amp maximum supply. This is a simple and compact single-row Eurorack case, perfect for small, focused systems, taking along on travels, or as a tabletop addition to a larger setup.
Features:
-Aluminium lightweight 3U 84HP Case with integrated switched power bus.
-Busboard supports up to 16 Modules with a total maximum 1 Amp power load on each rail.
-Provides up to 1 Amp power on both -12V & +12V rails. (1A on -12V and 1A on +12V)
-Requires 12-15v external DC/DC power ‘brick’ with center positive 2.1mm barrel and at least 2 Amp rating.
-M3 threaded fixed mounting strips (no sliding nuts!)
-Supports modules up to 42mm depth (approx 2 stacked pcbs). All ALM modules fit.
Specs:
Power: +12V 1A / -12V 1A, quoted 100mV ripple noise at max load. No 5V rail.
Size: 84HP / 3U / 435 x 134 x 65mm
Max Module Depth: 42mm (Note: This case is not suitable for modules with 3 x PCB depth – eg. Dannysound Timbre & MML Filter, MTM Spring & digital brick – these modules are too deep to fit this case)
MTM Radio Music/Chord Organ and Prok Drums modules will fit in this case
Power connector: 2.1mm center-positive barrel connector requiring at least 2A minimum power brick.
